Baled silage is now made on two-thirds of all farms in Ireland, and accounts for one third of all silage made. It is particularly prevalent as the primary silage-making system on both beef farms and smaller-sized farms. However, it is also widespread as a second silage-making system on many other farms.

The series of experiments contained in this report were conducted as part of a collaborative EU Structural Funds supported research project jointly carried out between the Teagasc research centres at Grange and Oak Park. Some of the research was also conducted in collaboration with the Botany Dept. at University College Dublin.

The contents of this report are presented under the following headings:

A more specific and focused survey was conducted to identify the characteristics that describe the making, storing and feeding of baled silage on Irish farms. This information could then be used to pinpoint the strengths and weaknesses of different baled silage systems, and to indicate the needs and opportunities for new and improved technologies. A written questionnaire was sent to both Teagasc dairy and drystock advisors, with the request that they each complete copies for two of their clients who make baled silage. A total of 238 completed forms were returned by 128 advisors from 22 counties between April and September 1997.

For the farmers involved in the survey, 3% were making baled silage for the first time, 56% had been doing so for up to 5 years, a further 36% for up to 10 year and 5% had made baled silage for over 10 years.

Old permanent grassland (43%) was more frequently used for making baled silage than ryegrass swards (29%), although both sward types were used on many farms (28%). In general, when baled silage was made it was more common to manage the grass crop deliberately for silage production (74% of farms) rather than to opportunistically harvest grass that was surplus to grazing requirements (23% of farms), although a small proportion (4%) of farms used both strategies. Farmers usually exercised reasonable flexibility in choosing the date for harvesting - only 25% used pre-selected dates whereas 75% were able to make more tactical and immediate decisions.

Wilting is an important part of the baled silage system on Irish farms - bales were made on the day of mowing on only 10% of farms, the following day on 51% of farms and within 2 days on a further 34% of farms. In this survey, wilting was extended to longer than 2 days on only 4% of farms.

Virtually all baled silage in Ireland involved round bales with a nominal diameter of 1.22 m. Most bales used for making baled silage have a fixed-size chamber (95% of farms). Within the fixed chamber category, roller-type balers were used on 78% of the farms, with chain and slat-type balers on the remaining 22%. Chopper balers were used on only 32% of the farms involved in the survey, and twine was more commonly used than netting for tying bales (91 versus 9% of farms). Recent baler sales however, indicate that both chopping and net use are increasing on farms.

Virtually all bales were wrapped in plastic film, with black being the most common colour (99% of farms),and a clear shift from 500mm to 750mm wide rolls was evident. On 34% of farms, the farmer rather than the contractor purchased and supplied the rolls of stretch film. Wrapping was carried out in the field where the bales were made on the majority of farms (72%) rather than at the storage site (28%). Bales were normally wrapped quickly after baling, with bales being wrapped within 2 hours on 70% of farms, within 6 hours on a further 25% of farms, between 6 and 12 hours on 3% of farms and longer than 12 hours on only 3% of farms.

On 90% of farms, four layers of film were normally applied to bales, with 6 layers being stated for 10% of farms. The quantity of film applied to a bale is determined by the number of bale rotations used in the wrapping cycle. For most 1.22 m diameter bales, 16 turntable rotations when using 750 mm wide film are required - 13 or 14 turns would be inadequate. The proportion of farms where wrap monitor settings of 13, 14, 15, 16 and 17 were claimed was 2, 17, 21, 45 and 3% respectively, with a further 12% claiming setting other than these.

On 14% of farms making baled silage, the bales were off-loaded directly from the wrapper to their storage position. In contrast, a rear-mounted handler, a front-mounted handler, a trailer, or a combination of these approaches, was used for transporting bales on 42, 18, 2 and 23% of farms, respectively.

Bales were usually moved to their storage location on the day of wrapping (72% of farms), with transport being the following day on 22% of farms and at least 2 days post-wrapping on a further 5% of farms. Bale transport and stacking appeared to be a somewhat time-consuming and slow process.

Bales were most often stored in or adjacent to the farm-yard (85% of farms) rather than in an outlying field (15%). They were most frequently located on an earthen base (30% of farms) rather than a gravel or stone (37%) or concrete (22%) base, with a number of storage base types prevailing on about 10% of farms.

Bales were stored on their round (barrel) side more commonly than on their flat end (70 versus 30% of farms). On 55% of farms they were stored in a single layer whereas on 17% and 28% of farms they were stored 2 and 3 tiers high, respectively.

Protective netting to prevent bird damage was placed over the bales on 17% of farms, the bale storage area was baited for vermin on 31% of farms and the bales were fenced-off from livestock on 84% of farms.

Effluent production from wrapped bales was not noted on 88% of farms.

The plastic wrap was inspected for damage before the bales were removed from the field on only a quarter of all farms. During storage, bales were inspected for damage on a weekly or monthly basis on 48 and 34% of farms respectively, but were rarely or never inspected on 18% of farms.

To the question of mouldy baled silage being offered to livestock when it was found, 46% of respondents stated they did offer it for feeding.

The data-set of 238 farms for which completed questionnaires were returned was divided into those farms where visible mould growth was evident on < 25% of bales (low mould; n=100) and those where it was visible on >75% of bales (high mould; n=105). These two sub-populations were then compared in terms of all recorded aspects of their silage making, handling and storing practices. Mould growth was evident under all conditions, with no single recorded factor overwhelmingly predisposing wrapped bales to mould growth. Higher incidences of visible mould growth on baled silage thus seemed due to multi-factorial causes, as well as very probably to the manner in which some practices were carried out - such qualitative distinctions however were outside the sensitivity of the survey. Where a relationship was found between a factor and the incidence of mould growth, this was invariably a trend with many exceptions. In addition, these relationships were likely to be associative rather than causative.

Mushroom-type growth (during 1996/97) through the plastic wrap film surrounding the bale was reported on 28% of farms (not seen at all on 72% of farms). Such mushroom-type growth was seen the previous season on 15% of the farms in the survey, as well as on 15% of the farms before 1995/96. For those farms where mushroom type growth through the plastic was noticed, it was first observed in September in 32% of cases, with a further 53% of farms recording growth by the end of December. It must be suspected that on some of these farms the growth of mushroom-type fungi through the plastic wrap and their first-sighting where not simultaneous.

Again, for those farms where mushroom-type growth through the plastic was noticed, it affected <10% of bales on 79% of these farms, from 10 to 30% of bales in 17% of cases, and over 30% of bales on only 3% of the farms. Correspondingly, it was adjudged to have spoiled fewer than 10% of bales in 88% of cases, and from 10 to 30% or above 30% of bales on 8% of 4% of farms where it was noticed, respectively.

When the survey population was divided into those claiming mushroom-type growth and those claiming none, no difference was found between the farms in the two groups for almost all of the baled silage making, handling or storing components assessed. As with mould growth, multi-factorial effects and, in particular, the detailed manner in which the various practices were carried out, were the likely causative factors.

Ninety-two percent of the respondents to the survey indicated that baled silage was fed during the winter, with only 8% indicating it was fed throughout the year. Furthermore, the data indicated that on farms with dairy or beef-suckler cows, baled silage was more frequently offered to dry than lactating cows - this may quite simply reflect the cow being dry rather than lactating for a greater proportion of the indoor period. On cattle farms, baled silage was more commonly offered to weanling and stores than to finishers. On the sheep farms in the survey, ewes were offered some baled silage in 90% of cases.

1 . Baled silage in this survey is characterised by being, in general, made :

• using permanent grassland swards
• to provide winter feed rather than aid grazing management
• in relatively small quantities
• between May and November, but mainly in June
• with reasonable tactical flexibility in the harvest dates chosen
• with crops generally being wilted, but without being tedded to achieve full ground cover[however effluent usually not produced]
• with contractors doing most of the baling and wrapping
• with 1.22m diameter round bales being produced, and tied with twine (although the use of tying with netting is increasing)
• from balers of fixed chamber size(mainly roller type) without a chopper facility (although the use of the latter is increasing)
• by wrapping quickly in 4 layers of black plastic stretch-film in the field
• by transporting the same day on a tractor-mounted handler to the farmyard
• and stored on their round(barrel) sides, and fenced from livestock.

        However, within the above averages a large array of different practices are used in     making, handling, storing and feeding baled silage.

• 87% of farms making baled silage had visible mould on some bales
• 42% of bales had some visible mould present
• 28% of farms making baled silage had some mushroom-type growth through the plastic wrap

No single recorded factors overwhelmingly predisposed bales to or prevented them from mould or mushroom-type growth. Besides the likelihood of multi-factorial causes being involved, qualitative issues were also probably very important : "it is not what you do, it is the way that you do it".

Controlled experiments will be needed to separate and quantify these important factors.

Wilting is a necessary part of most baled silage-making systems in Ireland. It is required to assist preservation, to reduce the number of bales per hectare and to reduce the weight of individual bales. However, climatic conditions in Ireland are often not conducive to rapid wilting, and this can be compounded by heavy crop yields and large, narrow mown swaths. A series of seven experiments investigated alternate approaches to field wilting.

Introduction. Considerable quantities of water are put into silos when unwilted grass is being ensiled. This can (a) promote a more extensive fermentation which is difficult to control, (b) produce effluent which is a source of loss of digestible nutrients, a potential pollution hazard and the medium that corrodes concrete, and (c) ultimately increase the cost of feeding cattle. However, partially field drying (i.e. wilting) the crop to remove water pre-ensiling, thereby increasing the dry matter (DM) concentration, is very dependent on weather conditions. These 2 experiments describe the diurnal pattern in grass DM and water soluble carbohydrate (WSC) concentrations and compare three wilting techniques over a range of weather conditions.

Materials and Methods. Twenty-eight plots (each 8 x 2 m) were marked out in each of 4 replicate blocks in a permanent grassland sward (50% Lolium perenne, 20% Agrostis, 20% Poa and 10% other) in each of 2 successive years. The plots within each block were arranged in a split-plot design, with one group of four adjacent plots being harvested each week, in sequence, within a seven-week harvesting cycle between mid-May and mid-August (15 weeks). Each week, the plots were assigned at random to the following treatments: (1) uncut, (2) cut and left undisturbed, (3) cut, tedded immediately and undisturbed thereafter, and (4) cut and tedded three times (immediately and after 6 and 24 h). Grass was mown at 0800 h using a rotary mower (1.9 m wide cut; 8 cm stubble height), sampled, and all treatments subsequently sampled after 6, 24 and 30 h. After 30 h, the four plots within each block were cut with a reciprocating mower (5 cm stubble height), raked clear and fertilised.

Introduction. Quickly reducing the water content of grass by field wilting makes it easier to preserve as silage and also reduces effluent production. Successful field wilting depends on evaporating water from the mown crop by exposing as much undried grass as feasible to solar radiation. Consequently, if the desired meteorological conditions prevail (high solar radiation, low relative humidity and no rain), the ideal approach would be to ted the grass to achieve full ground-cover immediately after mowing, and to toss the drying crop frequently thereafter. Because almost 90% of all silage in Ireland is currently harvested by contractors, most of whom use 2 to 3 m wide mowers and are unwilling to ted grass, a compromise approach of laying wide windrows instead of the more conventional narrow windrows behind the mower was studied.

Materials and Methods. Plots (8 m x 4 m) were marked out in a permanent grassland sward (50% Lolium perenne, 20% Agrostis, 20% Poa and 10% other). The plots within each block (replicate) were arranged in a split-plot design. The three adjacent plots within each group were assigned at random to the following treatments: (1) uncut, (2) cut and left undisturbed, and (3) cut with gates at back of mower opened wide and undisturbed thereafter. Within each block (there were four blocks) there were seven such groups of three plots, each group of three being harvested in sequence within a seven week harvesting cycle (i.e. 21 plots per block). The harvesting procedure was repeated on 14 occasions between 22 May and 21 August. Grass was cut (0800 hours) using a rotary mower (Kidd Clipper 240-2) which cut a 2.4 m wide swath at a stubble height of 8 cm and all treatments sampled after 0, 6, 24 and 30 hours. In addition, samples were taken from the top and bottom of the swath in treatment 2 after 30 hours. The yield of grass was measured for treatment 3 after 0 hours and taken to represent the starting yield for all 3 treatments. Grass samples had their dry matter (DM) and water soluble carbohydrate (WSC) contents determined. After 30 hours, the three plots within each block were raked clear, cut with a reciprocating mower to a stubble height of 5 cm and fertilised.

Conclusions. Modifying the settings on a mower to place the mown grass in a wide rather than a narrow row increased wilting rate. On average, in excess of 24 hours wilting was required to reach over 250 g DM/kg grass when grass was mown at 0800 hours. Variable drying rates occurred within swaths, being progressively poorer with depth from the swath surface.

Introduction. Field wilting of grass before ensiling can help preservation and reduce/eliminate effluent production. Rapid wilting is necessary to minimise physical and nutritive value losses. Wilting rate is dependent on grass type and yield, weather conditions and mechanical treatment of grass. The objective of the research outlined here was to assess comparative performance of a range of mechanical swath treatments.

Materials and Methods. A series of four replicated field experiments, comparing the wilting rate of a number of different swath treatments, was carried out between May 17 and June 10. Individual treatment details and the experiments in which they were evaluated are outlined below:

A moderate yielding, predominantly perennial ryegrass sward was used in the experiments. Large plots (88 m² - 200 m², depending on treatment) were used to eliminate edge effects with field-scale machinery. A randomised block design was used with three replications. All treatments were cut from 0900 h. Samples were taken from each plot three times per day for dry matter (DM) analysis.

Experiment 6 included assessments of alternative swath formations that could prove useful for high-output forage harvester systems. Drying conditions were exceptionally good. Where a number of swaths were grouped together, a very wide windrow (T5) allowed faster wilting than a narrow row (T3). Similarly, delaying the grouping of the individual swaths until 1200 h on the second day allowed drying rate to be improved (T6 v T3). The use of an over-the-top tedder to redistribute grass, while maintaining a swath structure, also improved drying rate (T7). In Experiment 7, additional treatments of particular relevance to baled silage were evaluated. Use of one or two passes of an over-the-top tedder improved the drying rate of an unconditioned swath (T9 and T10 vs T8). However, a wide swath produced by a mower conditioner dried faster (T2).

Conclusion. This series of experiments indicated the significant effects of swath density, conditioning and tedding/spreading on grass drying rates. There is scope to improve drying rate and minimise wilting losses by the selection of appropriate mechanical swath treatments.

Introduction. The cost of baled silage production is influenced by the number of bales produced per unit area of crop. While grass yield is the principal factor determining the number of bales produced, other factors are also involved. Grass dry matter (DM) and physical characteristics, baler type, the use of in-baler chopping mechanisms, and baler adjustment and operation may all influence bale yield and, consequently, production costs. The objective of the work reported here was to establish the effects of baler density setting, forward speed, the use of chopping mechanisms and the influence of wilting on bale weight and, consequently, number of bales per unit area.

A fixed-chamber, roller-type baler with a removable bank of knives (Deutz Fahr 2.30 OC) was used for Treatments 1 to 5. A flail chopper baler (Orkel GP1202) was used for Treatment 6. In each experiment a randomised block design was used with 4 to 6 replicates, depending on the trial. Measurements included bale weights, bale dimensions and grass DM samples.

The variability in results between the experiments indicates that the physical characteristics of the grass and the grass swath may influence bale density and response to the treatment factors assessed in these experiments. The effect of the baling treatments would also need to be assessed with grass of lower DM content than that available in these experiments.

Conclusions. A number of baling factors were shown to influence bale DM weight and, consequently, the number of bales produced per unit area. Treatment response varied between the individual experiments reported. Evaluation of the baling treatments with wetter grass would be useful.

Introduction. One of the reasons for the growth in popularity of baled silage is that silage storage and effluent management require low capital investment in contrast to conventional silage. Baled silage is generally made with drier (more wilted) forage than conventional silage and consequently there is often no effluent leakage from the bales. However, if the grass ensiled is of a low dry matter concentration (DM), effluent is produced and requires management to avoid pollution. The aim of this experiment was to assess the level of effluent production from wrapped round bale silage produced at a range of grass DM concentrations, with or without chopping, and stored with a range of vertical pressures.

Materials and Methods. Bales were produced from second harvest grass at three DM concentrations (193, 231 and 277 g/kg) during the last week of July, with alternate bales being either chopped or unchopped at baling (Claas Rollant 46 baler). Four replicates were used per treatment. Bales were immediately loaded onto a trailer and transported to the storage site where they were wrapped with nominally four layers of plastic film (Bonar-Volac) using a conventional bale wrapper (Kverneland-Volac). Bales were stored (on their round sides) under cover and in plastic liners to collect the effluent. Bales at the two lower DM concentrations were subjected to three loading regimes to simulate different height of storage conditions in a stack:

(i) No surcharge but restrained from lateral movement (simulates storage in a single layer)

(ii) Surcharge load of 300 kg, restrained from lateral movement (simulates the bottom of 2 layers)

(iii) Surcharge load of 600 kg, restrained from lateral movement (simulates the bottom of 3 layers)

The high DM bales were subjected only to the third loading regime. The surcharge loading was provided by sand bags while the lateral restraint was provided by portable self-supporting precast concrete walls of 1.2 m height.

Effluent was collected and measured on Monday, Wednesday and Friday of each week for the first 10 weeks after ensiling. Subsequently, effluent was collected at weekly intervals until flow ceased after 19 weeks.

Conclusion. Big bale silage can produce effluent. This was prevented by wilting grass to 231 g DM/kg (or above). With wet forage more effluent was produced where higher simulated storage stacking heights were used. In the absence of more reliable information, a regression equation developed for precision-chop silage in horizontal silos gives an approximation of effluent production. The total quantity of effluent produced is reduced by not stacking the bales and eliminated by adequately wilting the grass.

Weissbach, F. and Peters, G. (1983). Quality chemical composition and feed value of silage effluent. Feldwirtschaft, 24: 78-81.

Introduction. Baled silage is now a significant forage conservation system, with most livestock farmers using the technique to conserve at least some of their winter feed. The reliability of the system is currently being examined because of the reported problems with mould development on bales. To determine the factors which permit fungal growth on bales, it is necessary to determine the levels of various gases within the bales during the entire conservation period. The work outlined here describes the assessment and development of bale gas sampling techniques for subsequent gas chromatography analysis. The objectives were to establish techniques which would: (1) allow gas samples be taken without interfering with the seal on bales, and (2) facilitate the procurement, transport and analysis of gas samples with a consistent level of accuracy. A schematic diagram of the sampling technique is shown in Figure 1.

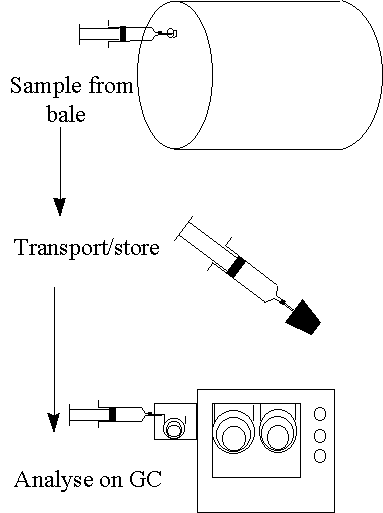

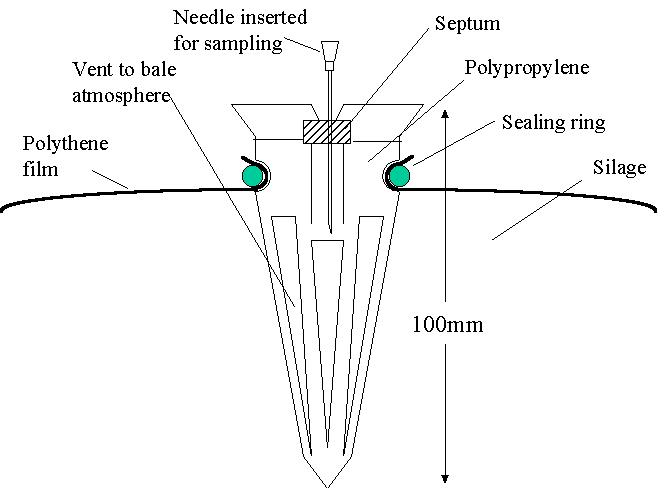

Materials and Methods. Direct piercing of polythene film with a hypodermic needle and the fixing of septum material to the bale were considered unsuitable sampling access methods because of subsequent sealing difficulties. A commercially-available bale venting device (Alfa Laval, Sweden), originally designed to allow gas to vent from bales sealed in 100 m m polythene bags, was modified for use as a gas sampling port, by sealing the integral flap valve. The tapered unit is pushed through the bale plastic and sealed with a rubber ring (Figure 2). The integral septum allows sampling using an hypodermic needle. Experiments assessing the suitability of disposable plastic syringes (10 and 20 ml) and partially evacuated sealed test tubes (vacutainers, designed for syringe-free blood sampling) for taking and transferring were carried out. A Shimadzu GC-8A gas chromatograph fitted with Molecular sieve 5A (oxygen and nitrogen analysis) and Poropak Q (carbon dioxide analysis) columns was used for all sample analysis. It was fitted with an MGS-5 gas sampling loop which allowed a sub-sample to be automatically injected onto the column from a 10 ml or 20 ml gas sample. Recorded values in excess of 99.5% O₂ and CO₂ were attained when calibrated with 100% O₂ and 100% CO₂ standard gases.

The first experiment assessed the consistency of the vacuum in evacuated containers by measuring the quantity of water drawn in under vacuum to 10 vacutainers. The second experiment compared disposable syringes and vacutainers as suitable storage/transfer methods for gas samples. Oxygen (100%) was sampled with twelve syringes and twelve vacutainers from a tube/septum arrangement attached to an O₂ cylinder. The syringe needle ends were immediately sealed in rubber bungs. Following a storage period of approximately 6 hours, the O₂ content of six syringes and six vacutainers was assessed. The samples from the vacutainers were transferred to the sampling loop with a syringe. The second set of samples were analysed after 14 days. The third experiment assessed the technique of sampling from the modified bale vent valve (described earlier) with disposable syringes using different syringe filling speeds. A polythene bag (0.5 m x 0.8 m) was sealed, fitted with a modified bale vent valve and filled with carbon dioxide (100%). Seven syringe samples were taken at each of the two filling rates: 1 ml/s; 2 ml/s. The samples were analysed for CO₂ content using the gas chromatograph.

Conclusion. A sampling technique using plastic disposable syringes, a modified bale vent valve as access port and a gas sampling loop on a Shimadzu gas chromatograph was developed and tested. An appropriate syringe filling speed was determined.

In November, 1990, and in October 1991, mushroom-type growths on big-bale silage from Leitrim and from Tipperary, respectively, were identified by Hubert Fuller as Schizophyllum commune. Webster (1991) reported findings the same fungus on big bales in Devon, England. Schizophyllum is a gilled bracket fungus which has a worldwide distribution. It is known primarily as a saprotrophic white rot fungus on woody substrates in warmer climates where its fructifications are commonly seen on fallen branches in broadleaved and less frequently, coniferous woodland. It is also found in temperate regions on timbers and on a variety of other substrata and has been reported as a plant and human pathogen (Cooke, 1961; Rihs et al., 1996). Before the above finds, the only record of S. commune in Ireland was on wooden beams at Cork Harbour in 1843. In November 1996, the fungus was discovered in woodlands in Offaly, by J. Feehan, and in January 1998, in Limerick and Wicklow, by H. Fuller.

Apart from the mycological interest in finding this wood-rotting fungus in an unusual niche, on big-bale silage, the finds in 1990 and 1991 attracted no further attention. However, by autumn 1995 it was evident that Schizophyllum was of more common occurrence on big-bale silage in Ireland. During the winter seasons of 1996 and 1997 the fungus was identified as a contaminant in numerous big-bale samples, obtained from all counties. The presence of Schizophyllum in a bale is indicated by the presence of small bumps under the polythene, anywhere on a bale surface. Having emerged through the plastic the fungus is first evident as small white growths several millimeters in size, which eventually expand and develop into gilled bracket mushrooms, often in clusters or rosettes 10 to 15 cm in diameter. The individual mature fruit bodies (basidiocarps) are tough and elastic, grey-white to brownish in colour, fan-shaped with very short stipes, and with a tomentose, wrinkled upper surface. Cap margins are furrowed, scalloped and incurved. The gills are pink to flesh coloured when young and spread out radially from where the fruit body is attached to a bale. A characteristic feature of the gills is the manner in which they appear to split. The gills consist of two lamellae lying side by side which curl away from each other on drying. The common name for the fungus is "split-gill".

When the plastic covering is removed from a bale affected by Schizophyllum, thick masses of white to fawn-coloured mycelium are evident on the silage surface, usually accompanied by dense rubbery differentiating tissue. Mechanical pressure exerted by the enlarging fungal mass causes a stretching of the polythene cover and its eventual penetration by the fungus. White Schizophyllum colonies have been seen to spread deep (>40 cm) within bales.

Fungal samples (n>130) from bales, either as mushroom growths or as mouldy silage, were collected by the authors or forwarded to them from various locations countrywide. Basidiocarp specimens were examined, identified and stored in a herbarium. Apart from one location where Coprinus macrocephalus was present on badly decomposed silage, S. commune was the only mushroom growth found on big bales. Samples for culture were plated onto malt agar supplemented with chloramphenicol and streptomycin (both at 0.1 mg/ml). Schizophyllum readily grows in vitro at 25^oC, but isolates were occasionally lost due to heavy primary bacterial or fungal contamination. Using a fruiting medium of Raper & Krongelb (1958) all Schizophyllum isolates were induced to form basidiocarps in culture and identification was further confirmed on examination of their morphological features. Clamp connections were observed on hyphae as were many peg-like projections which are characteristic of Schizophyllum.

At present some 80 isolates of the fungus have been established in pure culture and are being examined using morphological, biochemical and physiological criteria. These will help define the growth requirements of S. commune. Surveys have been conducted to assess the extent of the problem on big bales and field experiments have also been undertaken to determine which factors (silage dry matter, number of wraps etc.) favour growth of Schizophyllum on silage in big bales. The fungus has not yet been found on clamp silage. It is concluded that the mushroom Schizophyllum commune has grown on big-bale silage throughout Ireland, sometimes resulting in considerable loss of feedstuff.

Cooke, W.G. (1961). The genus Schizophyllum. Mycologia, 53: 575-599.

Raper, J.R. and Krongelb, G.S. (1958). Genetics and environmental aspects of fruiting in Schizophyllum commune. Mycologia, 50: 707-740.

Rihs, J.D., Padhye, A.A. and Good, C.B. (1996). Brain abscess caused by Schizophyllum commune: an emerging basidiomycete pathogen. J. Clinical Microbiology, 34 (7): 1628-1632.

Webster, J. (1991). Schizophyllum in hay bales. The Mycologist 5(3): 118.

Introduction. The traditional method of feeding big-bale silage in uncovered circular feeders is not compatible with modern livestock housing where animals are fed from a straight, covered feeding passage. A number of tractor-powered bale feeders which divide and/or distribute silage bales have recently become available. The objective of the experiment reported here was to determine the work rate, evenness of silage distribution and tractor requirements of three big-bale feeders.

Materials and Methods. The following machines were evaluated:

Bale splitter: A tractor-mounted device which uses an hydraulically-operated rear-facing knife to cut the bale. By repositioning the tractor, up to three separate cuts can be made to divide the bale into four sections (McHale bale splitter).

Chain and slat unroller: A tractor-mounted, hydraulically-powered implement which rotates the bale on a chain and slat elevator, stripping and delivering silage to the right side of the unit (Shelbourne Reynolds unroller).

Bale chopper: A tractor-mounted, p.t.o.-powered machine which uses a slowly-rotating vertical drum to feed the bale to a high-speed chopper which strips, chops and delivers the silage to the right side (Taarup-Kidd 824 chopper).

Note: The unroller and chopper require a separate tractor and/or loader to load the bale.

Bales made from 2^nd harvest grass with mean weight and DM contents of 594 kg and 248 g/kg, respectively, were used in the experiment. Unchopped bales were used for all three feeders. In addition, pre-chopped bales produced by a baler with a fixed-knife chopping mechanism were used with the unroller.

Work rates were determined by timing the complete feeding cycle for each of three bales per machine. Bale transport distance (30 m) and distribution length (10 m) were standardised. The evenness of distribution was assessed by weighing four fixed-length sections (600 mm) of the distributed feed for each of three bales per machine type. Fuel consumption and engine speed were recorded using electronic sensors and a data-logger. Power (equivalent p.t.o. power) was calculated using a regression equation developed from dynamometer calibration data. Tractor lift capacity requirement was estimated by calculating force moments about the rear axle from axle weight data. Tractor/machine turning space was also measured.

Conclusions. All three bale feeders were capable of distributing baled silage satisfactorily. The unroller had the fastest work rate, low power requirement and acceptable distribution. The chopper had a high power requirement and a slow work rate. The bale splitter had the poorest distribution but is an inexpensive machine and only requires one tractor for feeding.

Introduction. Silage harvesting systems in Ireland have changed markedly during the past 15 years, with the widescale replacement of direct-cut systems (e.g. single- and double-chop harvesters) by systems involving separate mowing and pick-up (e.g. precision-chop harvester and big round baler) operations. Big bale silages on Irish farms are normally wilted (324 g DM/kg and pH 4.8) compared to other (mainly precision-chop) grass silages (219 g DM/kg and pH 4.0), but have lower mean DM digestibility values (656 versus 673 g/kg) (Keating and O’Kiely, 1997a&b). Data from the Teagasc Farm Management Survey indicate that the big bale system has become the most common silage-making system on smaller size farms and on cattle rearing farms. The present experiment compared precision-chop and big bale silage systems. In particular, it was designed to separate the effects of wilting (unwilted versus wilted precision-chop), harvester system (precision-chop versus big bale) and important variations within harvester systems (no additive versus formic acid for the unwilted precision-chop system; unchopped versus chopped for the big bale system) on conservation characteristics and silage nutritive value for beef cattle.

Materials and Methods. A seven-week regrowth of a permanent grassland sward was mown on 17 July using a mower conditioner (Kuhn FC300 GT). Alternating rows of grass were allocated to the following conservation treatments: (1) precision-chop, unwilted; (2) precision-chop, unwilted plus formic acid; (3) precision-chop, wilted; (4) big bale, wilted and (5) big bale, wilted and pre-chopped. Unwilted treatments (approximately 120 tonnes each) were harvested within one hour of mowing, with formic acid (850 g/kg) being applied through the harvester (Pottinger MK VI) at 2.4 l/t grass. Grass for wilted (30 h) treatments was tedded (Krone KW 5.50/4 x 7) within an hour of mowing and was rowed (Krone KS 380-4.20/12) at the end of the first days wilt and harvested or baled (Claas Rollant 46 Roto Cut) the following day. Alternate rows for the big bale treatments were baled with the slicing blades engaged or disengaged. Precision-chop treatments were ensiled in walled, roofed, concrete silos (4.6 x 22.9 m) and sealed beneath two layer of black (0.125 mm thick) polythene film. Bales were transported to the storage area, wrapped (McHale 991 BE) with four layers of black polythene stretch film, and stored in single layers, outdoors, on a concrete base. Treatments were stored for 27 days post mowing before feeding commenced.

Fifteen Charolais crossbred heifers were allocated to each dietary treatment in a randomised, complete block (based on mean starting liveweight) design. Silages were individually offered, ad libitum, and supplemented with 2.5 kg concentrates (915 g rolled barley, 70 g soyabean meal and 15 g mineral + vitamin premix/kg) per head daily, for 118 days. Carcass data were obtained post slaughter. In vivo digestibility of the diets was determined on 3 occasions during the experiment, using 10 Friesian steers. Silage DM intake was restricted to 0.9 of ad libitum and the concentrate allowance adjusted to ensure similar forage to concentrate ratios as observed with the heifers.

Conclusions. The precision-chop harvester and big baler produced wilted silages of similar nutritive value for finishing beef cattle. Chopping forage at baling did not alter its conservation efficiency or nutritive value. Formic acid added under good ensiling conditions did not alter silage nutritive value. Wilting disimproved feed (40^oC oven) DM conversion efficiency.

The characteristics of baled silage making, handling, storing and feeding practices on Irish farms were defined. Although a diverse range of practices are employed, no single factors overwhelmingly predisposed bales to, or prevented them from, being efficiently or effectively conserved. Qualitative factors are at least as important as the type of practice used, and will require controlled experiments to separate and quantify.

Mould and mushroom-type growths were a widespread problem on baled silage

Wilting increased grass dry matter and water soluble carbohydrate (g/L aqueous phase) concentrations. Wilting practices and mechanisation systems that increase the interception of solar radiation by grass improve the drying rate. Large narrow windrows result in very diverse dry matter concentration profiles in the swath.

Bale dry matter (DM) densities were reduced by low density settings on the baler. Slower forward speed tended to increase bale DM density. Increasing forage DM concentration or chopping the forage at baling increased bale density. The variability between experiments indicates that the physical characteristics of the grass and the swath may influence bale density and the response to the factors studied.

Baled silage can produce effluent where wetter forages are ensiled, particularly where the bales are stored more than one layer deep. Chopping the forage at baling did not influence effluent production. However, wilting to above 231 g DM/kg prevented effluent production in an experiment using a second cut perennial ryegrass-dominant sward.

A new protocol for sampling gas from baled silage was developed.

Schizophyllum commune was identified as growing on baled silage throughout Ireland, sometimes resulting in considerable loss of feedstuff. It has not yet been found on clamp/bunker silage.

Three types of bale feeder were assessed in terms of work rate, power requirement, evenness of forage distribution and turning space. The advantages and disadvantages of each system were defined.

A precision-chop harvester and baler produced wilted silages of similar nutritive value for finishing cattle. Chopping the forage at baling did not alter its conservation efficiency or nutritive value. Wilting disimproved feed conversion efficiency.

The authors acknowledge the major contribution to this project of many people. We are grateful for the collaborative input of Teagasc advisory personnel (Section 1); Ms. Mary Mescall (Section 5) and Hubert Fuller (Botany Dept., UCD) and Killian Brady (Walsh Fellow) (Section 6); the skilled technical input of Patrick Collins, John Marron, James Hamill, Michael O’Sullivan, Paddy Fitzhenry, Grange Laboratories staff and other technical staff; Grange, Oak Park and Kilmaley farm-staff; Mary Smith and Ann Gilsenan.

Brady, K., Fuller, H., Forristal, D., Lenehan, J.J. and O’Kiely, P. (1998). Mushroom growths on big-bale silage in Ireland. Proceedings of the Agricultural Research Forum at University College Dublin, p 95-96.

Forristal, D., O’Kiely, P. and Lenehan, J.J. (1996). The effect of mechanical swath treatment on grass wilting rates. Proceedings of the Agricultural Research Forum at University College Dublin, p 135-136.

Forristal, D., Lenehan, J.J. and O’Kiely, P. (1996). A study of factors influencing bale density in baled silage systems. Proceedings of the Agricultural Research Forum at University College Dublin, p 81-82.

Forristal, D., Lenehan, J.J. and O’Kiely, P. (1997). The performance of alternative mechanised systems for feeding big-bale silage. Proceedings of the Agricultural Research Forum at University College Dublin, p 97-98.

Forristal, D., Mescall, M., O’Kiely, P. and Lenehan, J.J. (1998). Development of gas sampling techniques for baled silage. Proceedings of the Agricultural Research Forum at University College Dublin, p 77-78.

Lenehan, J.J., O’Kiely, P. and Forristal, D. (1997). Effluent production from round bale silage. Proceedings of the Agricultural Research Forum at University College Dublin, p 99-100.

O’Kiely, P., Forristal, D., Lenehan, J.J., Fuller, H., Brady, K. and Barlow, M. (1998). Characteristics of baled silage on Irish farms - a survey. Farm and Food, 8(3): 29-32.

O’Kiely, P. (1995). Effects of field wilting on grass dry matter and water soluble carbohydrate concentrations. Proceedings of the Agricultural Research Forum at University College Dublin, p 55-60.

O’Kiely, P., Forristal, D. and Lenehan, J.J. (1996). Grass dry matter and water soluble carbohydrate concentrations in different wilting systems. Proceedings of the Agricultural Research Forum at University College Dublin, p 77-78.

O’Kiely, P., Lenehan, J.J. and Forristal, D. (1998). Big bale and precision-chop silage systems: conservation characteristics and silage nutritive value for beef cattle. Proceedings of the Agricultural Research Forum at University College Dublin, p 33-34.

Table 1. Scale of baled silage (% of farms in the survey)¹
